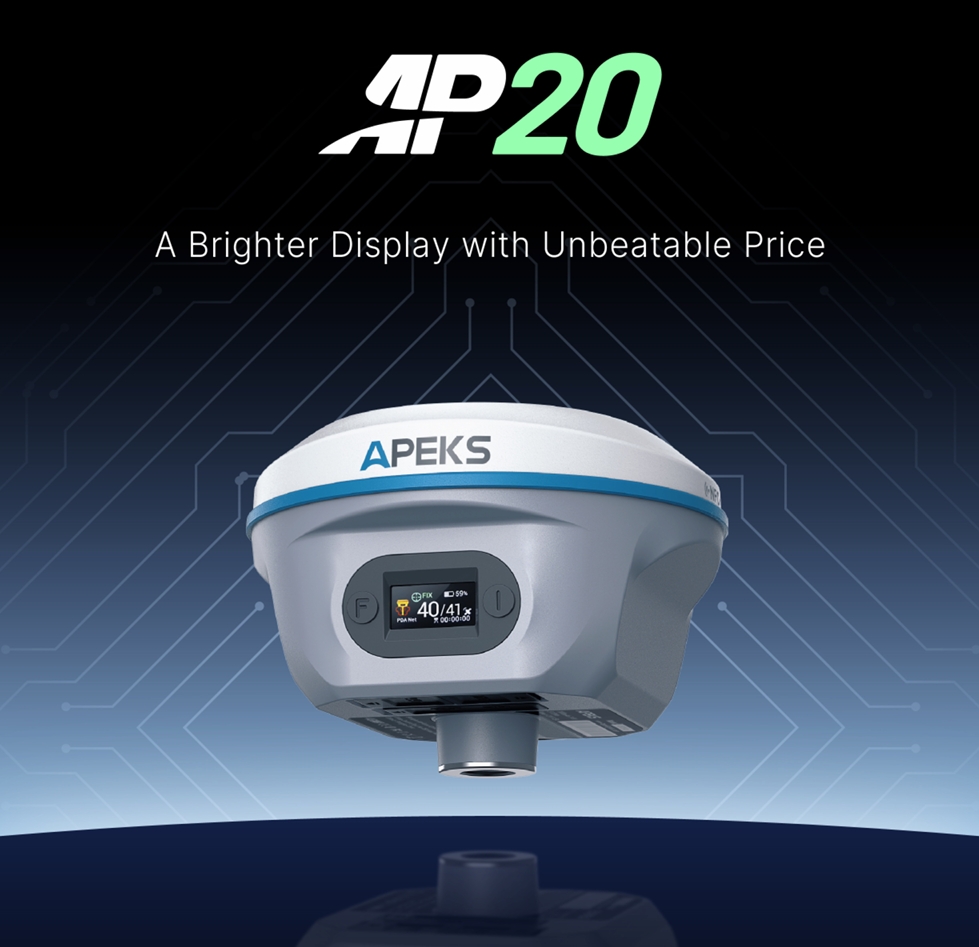

AP20 GNSS Receiver
A Brighter Display with Unbeatable Price!
A Brighter Display with Unbeatable Price!
Brand
Apeks GNSSDistributor
Trivision Tech (India)Technology
1408-Channel GNSS + 120° IMU + UHF + OLED DisplayOverview
The Apeks AP20 is a next-generation high-precision GNSS receiver combining cutting-edge 1408-channel technology, built-in UHF radio (8–15 km range), and an innovative 0.96" OLED color display with dual physical LED buttons. Featuring up to 120° tilt-compensated IMU (interference-free), IP67 ruggedness, and exceptional value-for-money, the AP20 delivers professional-grade RTK performance ideal for surveying, construction, and mapping in the toughest environments.
Key Product Features
- 1408-channel GNSS – Full constellation & multi-frequency support
- Up to 120° tilt survey with IMU (fast initialization <5s)
- 0.96" high-brightness OLED color screen + dual physical buttons
- Built-in 2W UHF TX/RX radio (8–15 km base-rover range)
- IP67 dust & water proof + shock/vibration resistant
- 7000mAh battery – over 20 hours static, 10+ hours RTK
- Supports NTRIP, Web UI, ApeksSurv field software
- Operating temperature: -45°C to +75°C
What We Provide
Apeks AP20 GNSS Receiver- Carbon Fiber Survey Pole (optional)
- CS3i Data Controller with ApeksSurv Software (optional bundle)
- Full India Warranty & Local Support by Trivision Tech
- Free Technical Support, Firmware & Software Updates
Perfect For
Land surveying, cadastral & boundary mapping, construction staking, topographic surveys, utility locating, GIS data collection, road & infrastructure projects, and any professional application requiring centimeter-level accuracy with maximum reliability and ease of use.
Solution & Results
The AP20 redefines professional surveying with its bright OLED screen for instant status visibility, powerful built-in radio for long-range RTK, and unmatched 120° tilt capability — eliminating the need for precise leveling. Combined with the intuitive ApeksSurv software and Web UI management, it boosts field productivity by up to 50% while delivering robust, reliable performance at an unbeatable price point.
